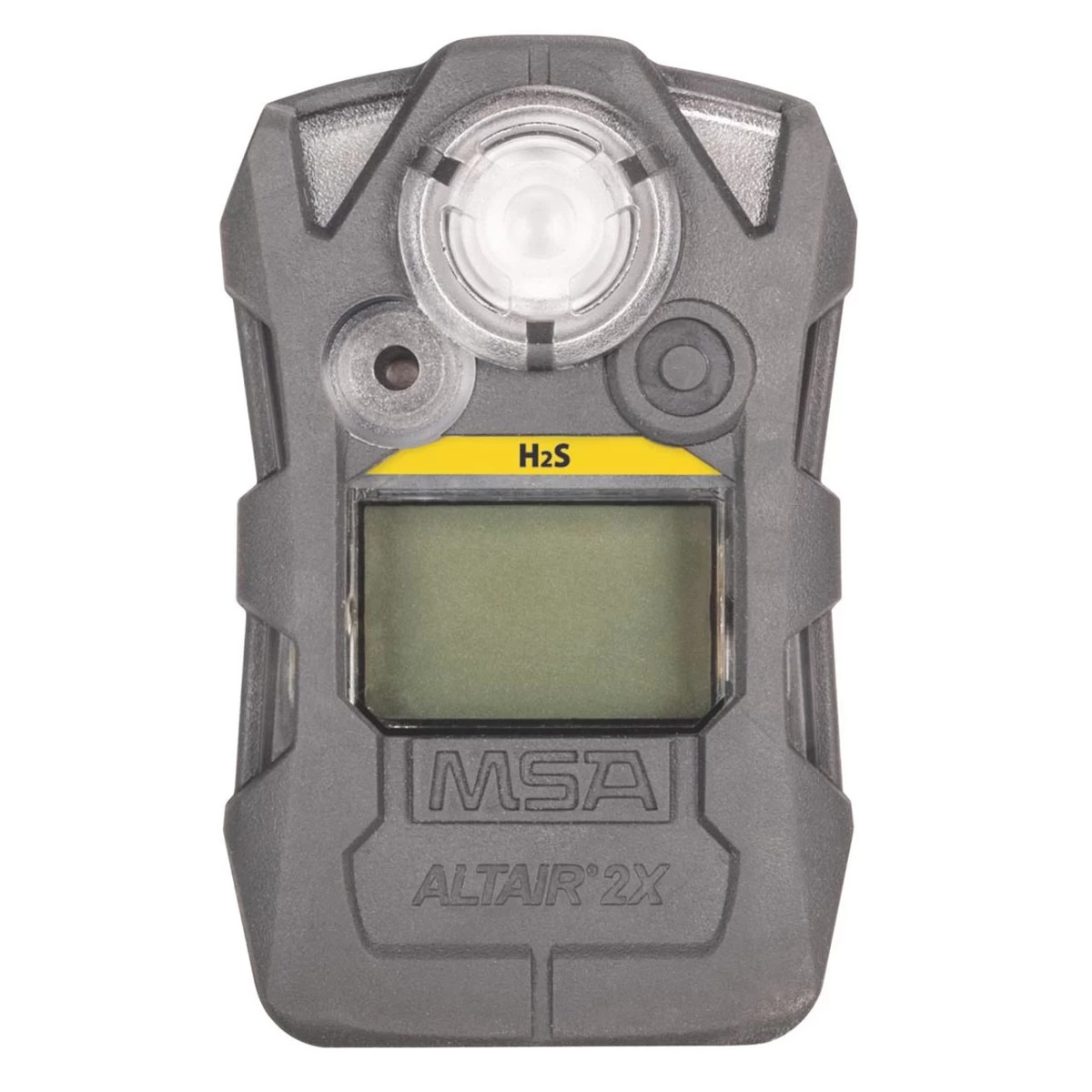

MSA Altair 2X Single-Gas Detector, Low Conc. Hydrogen Sulfide (H2S-LC)

Introducing the ALTAIR 2X gas detector from MSA Safety; the first single gas detector
that incorporates industry-leading X-cell® sensor technology in order to deliver unparalleled performance while drastically minimizing total cost of ownership, increasing durability, and delivering enhanced worker safety. The ALTAIR 2X is also the first portable gas detector to introduce revolutionary X-cell® pulse technology. By miniaturizing the electronics that control the sensors and placing them inside the sensor itself using MSA’s proprietary application-specific integrated circuit (ASIC) design, MSA X-cell® sensors are able to provide superior stability, accuracy, and sensor life.

ALTAIR 2X Features

• Minimal rF interference
• IP67 rated, the ALTAIR 2X is both dust tight and water tight
• Full three-year warranty supports the entire instrument, including the sensors
• Compatible with MSA Galaxy GX2 automated test system and MSA Link pro software
• Withstands extreme impacts with rugged polycarbonate housing and passes 25-foot drop test
• Records 300+ alarm events and 850+ hours of periodic data, including bump and calibration records
• X-cell® sensor response and recovery time reduces the gas consumption for calibration and gas bump tests (where applicable)
• The ALTAIR 2X family of detectors have full instrument traceability of bump and calibration records, peak readings, event logs and data logs

Specifications

• First Alarm: 5 ppm
• Second Alarm: 10 ppm
• Ingress Protection: IP67
• Event Logging: 300+ events
• Weight: 4.0 ounces including clip
• Battery: replaceable lithium battery
• Humidity: 15-90% RH non-condensing
• Dimensions (L x W x D): 3.5 in x 2.125 in x 1.9 in
• Instrument Life: 4-year expected instrument & sensor life
• Gas Type: Low Concentration Hydrogen Sulfide (H₂S-LC)
• Alarms Average: 95 dB typical at 30 cm distance, Ultra-LEDs, vibrating alarm standard

For more information on Stand-Alone Bump Testing, please click here. In addition, MSA has a full Operating Manual
